Photoelectric Standard Other Form Factors

Cubic 3030

The Cubic 3030 range is a complete miniature sensor series in rugged Crastin housings measuring 30 × 30 × 15 mm. Sensors are shock and vibration resistant, due to fully potted electronics, and benefit from high system reserves (excess gain). Pollution monitoring (green LED) warns of reduced system reserves due to pollution, allowing downtime to be avoided. Despite their small size, they feature all the usual protection functions, are robust and can be used for demanding industrial applications.

Available types include diffuse sensors, diffuse sensors with background suppression, polarized reflex sensors, diffuse sensors with analog output, through-beam sensors and fiber-optic amplifiers.

Cubic 3060

The fiber-optic amplifiers for DIN-rail mounting (DIN/EN 50022) feature long sensing ranges, outstanding detection properties for both long and very short ranges, high temperature stability and durability, thanks to stabilized light power (teach-in model only), and high switching frequency. For the teach-in versions, built-in adjustable pulse delay and stretching are standard.

Cubic 4050

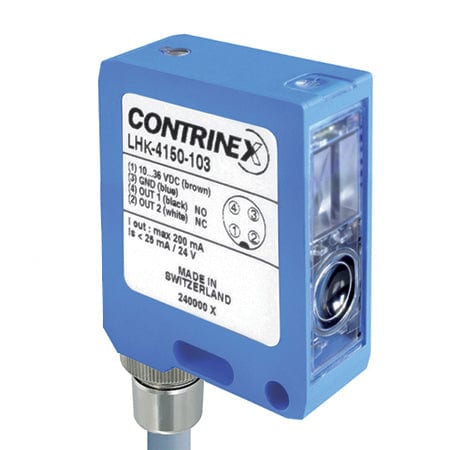

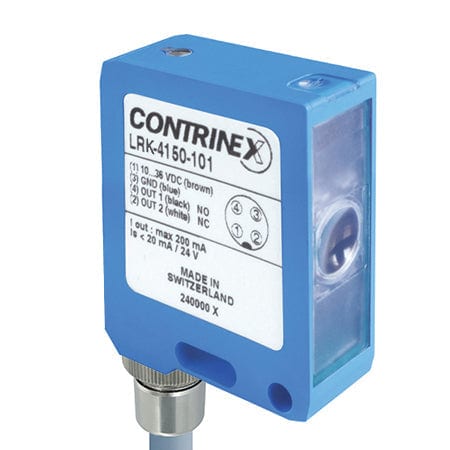

The Cubic 4050 series features high performance in a compact standard 40 × 50 × 15 mm housing. The range includes diffuse sensors, diffuse sensors with precise background suppression, polarized and non-polarized reflex sensors, as well as through-beam sensors. Color and contrast sensors are also available in this range.

Standard Diffuse 30 x 30 600 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Diffuse 30 x 30 600 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Diffuse 30 x 30 600 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

€71,29

In stock

Standard Diffuse 30 x 30 1200 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Diffuse 30 x 30 1200 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Diffuse 30 x 30 1200 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

€82,10

In stock

Standard Reflex 30 x 30 2000 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Reflex 30 x 30 2000 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Reflex 30 x 30 2000 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

€75,14

In stock

Standard Reflex 30 x 30 4000 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Reflex 30 x 30 4000 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Reflex 30 x 30 4000 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

€85,90

In stock

Standard Through beam 30 x 30 6000 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Through beam 30 x 30 6000 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Through beam 30 x 30 6000 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

From €43,21

In stock

Standard Through beam 30 x 30 12000 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

Standard Through beam 30 x 30 12000 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

€79,56

In stock

Standard Background suppression 30 x 30 15...150 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Background suppression 30 x 30 15...150 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Background suppression 30 x 30 15...150 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

€143,88

In stock

Standard Background suppression 30 x 30 15...200 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Background suppression 30 x 30 15...200 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Standard Background suppression 30 x 30 15...200 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

From €100,62

In stock

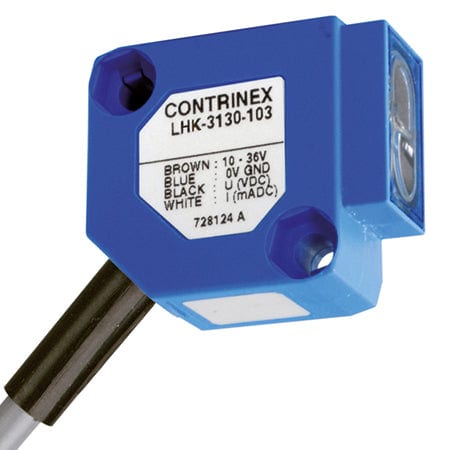

Standard Analog 30 x 30 100 mm PBTP (Crastin) No LED, red 660 nm

Standard Analog 30 x 30 100 mm PBTP (Crastin) No LED, red 660 nm

€170,66

In stock

Standard Diffuse 40 x 50 30...1200 mm PBTP Teach in LED, white

Standard Diffuse 40 x 50 30...1200 mm PBTP Teach in LED, white

Standard Diffuse 40 x 50 30...1200 mm PBTP Teach in LED, white

€91,62

In stock

Standard Reflex 40 x 50 4000 mm PBTP 3 turn pot. LED, red 680 nm

Standard Reflex 40 x 50 4000 mm PBTP 3 turn pot. LED, red 680 nm

Standard Reflex 40 x 50 4000 mm PBTP 3 turn pot. LED, red 680 nm

€91,62

In stock

Standard Through beam 40 x 50 50000 mm PBTP 3 turn pot. LED, red 640 nm

Standard Through beam 40 x 50 50000 mm PBTP 3 turn pot. LED, red 640 nm

Standard Through beam 40 x 50 50000 mm PBTP 3 turn pot. LED, red 640 nm

From €53,45

In stock

Standard Background suppression 40 x 50 25...500 mm PBTP 3 turn pot. LED, red 660 nm

Standard Background suppression 40 x 50 25...500 mm PBTP 3 turn pot. LED, red 660 nm

Standard Background suppression 40 x 50 25...500 mm PBTP 3 turn pot. LED, red 660 nm

€159,17

In stock

Standard Fiber amplifier 40 x 40 150 mm PBTP (Crastin) 20 turn pot. LED, infrared 880 nm

Standard Fiber amplifier 40 x 40 150 mm PBTP (Crastin) 20 turn pot. LED, infrared 880 nm

Standard Fiber amplifier 40 x 40 150 mm PBTP (Crastin) 20 turn pot. LED, infrared 880 nm

€94,17

Re-stocking soon

Standard Distance diffuse 50 x 50 (C55) 60...5000 mm ABS Teach button/input Laser class 1, red 655 nm

Standard Distance diffuse 50 x 50 (C55) 60...5000 mm ABS Teach button/input Laser class 1, red 655 nm

€343,56

In stock

Standard Distance diffuse 50 x 50 (C55) 100...5000 mm ABS Teach button/input Laser class 1, red 655 nm

Standard Distance diffuse 50 x 50 (C55) 100...5000 mm ABS Teach button/input Laser class 1, red 655 nm

€343,56

Re-stocking soon

Standard Background suppression 50 x 50 (C55) 0...5000 mm ABS Teach button/input Laser class 1, red 650 nm

Standard Background suppression 50 x 50 (C55) 0...5000 mm ABS Teach button/input Laser class 1, red 650 nm

€319,02

In stock

Fiber optic Fiber amplifier 30 x 30 60 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Fiber optic Fiber amplifier 30 x 30 60 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Fiber optic Fiber amplifier 30 x 30 60 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

€68,69

In stock

Fiber optic Fiber amplifier 30 x 30 120 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Fiber optic Fiber amplifier 30 x 30 120 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

Fiber optic Fiber amplifier 30 x 30 120 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm

€79,56

In stock

Color and contrast Contrast 40 x 50 12 mm PBTP Teach in LED, RGB

Color and contrast Contrast 40 x 50 12 mm PBTP Teach in LED, RGB

Color and contrast Contrast 40 x 50 12 mm PBTP Teach in LED, RGB

€215,22

In stock

Color and contrast Color 40 x 50 30...40 mm PBTP Teach in LED, white

Color and contrast Color 40 x 50 30...40 mm PBTP Teach in LED, white

Color and contrast Color 40 x 50 30...40 mm PBTP Teach in LED, white

€482,76

In stock

Standard Analog 30 x 30 100 mm PBTP (Crastin) LED, red 660 nm

Standard Analog 30 x 30 100 mm PBTP (Crastin) LED, red 660 nm

€170,66

In stock
