Short Specifications
Preliminary

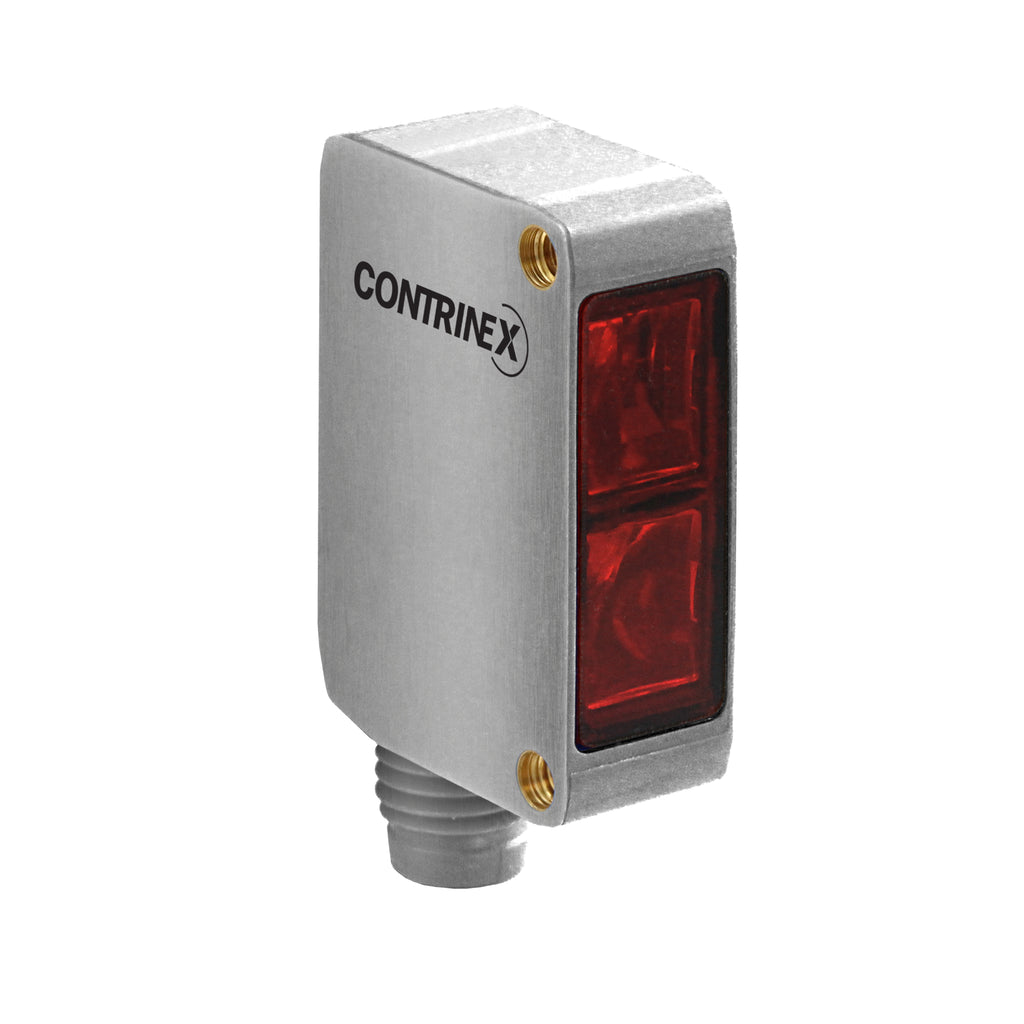

ISLR-C23MP-NMS-AE
| Operating range | 0...25000 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + Test input |
| Sensitivity adjustment | No |
| Connection | M8 4-pin |
| Housing size [mm] | 21.5 x 33 (C23) |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustm | 30...300 mm |
| Temperature range | -25...+65°C |
| Light source | LED, red 630 nm |
| Interface | IO-Link |
| Operating principle | Through-beam |
| Sensing range max. | 0...30000 mm |
