Short Specifications

DW-AD-512-M30

Operating range 40 mm
Switching frequency max. 65 Hz
Supply voltage 10...30
Polarity NPN
Output Normally Closed (NC)
Connection PVC, 2 m, 3 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 60 mm
Mounting Non-embeddable
Interface Standard output

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

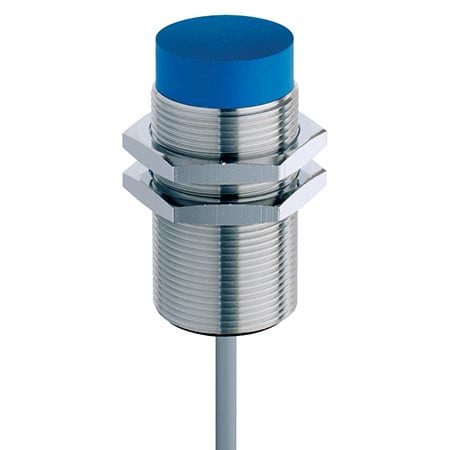

Basic Extra Distance Series 500 M30 Non embeddable 40 mm

SKU: DW-AD-512-M30
Connection: PVC, 2 m, 3 wire
Polarity and Output: NPN|Normally Closed (NC)
Sensor length: 60 mm
Price:
Rs.23,400
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
