Short Specifications

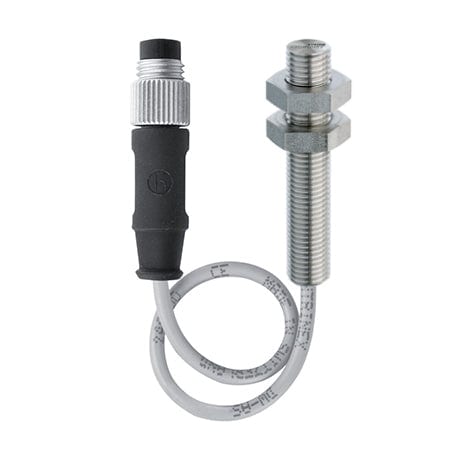

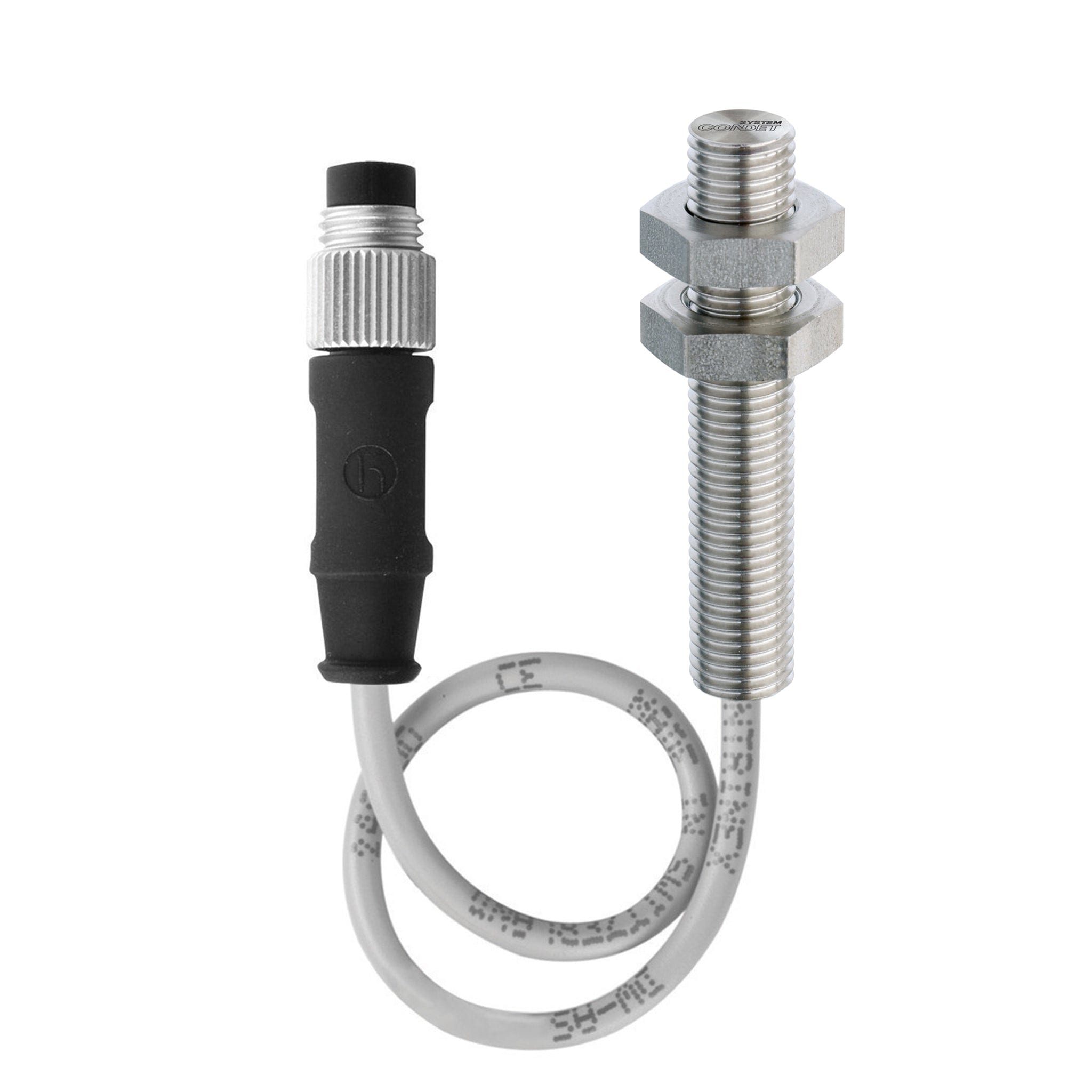

DW-AD-703-M8
| Operating range | 3 mm |
| Switching frequency max. | 1200 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 100 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M8 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 45 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
Downloads
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
