Short Specifications

DW-AD-613-M8

Operating range 2.5 mm
Switching frequency max. 4500 Hz
Supply voltage 10...30
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PVC, 2 m, 3 wire
Housing size [mm] M8
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -25...+70°C
Sensor Height 35 mm
Mounting Non-embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

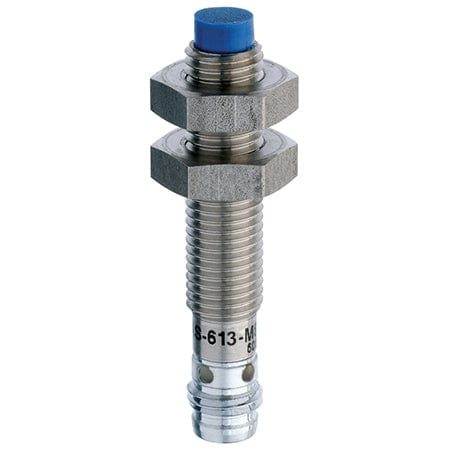

Basic Classics Series 600 M8 Non embeddable 2.5 mm

SKU: DW-AD-613-M8
Connection: PVC, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length: 35 mm
Price:
291 kr
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
