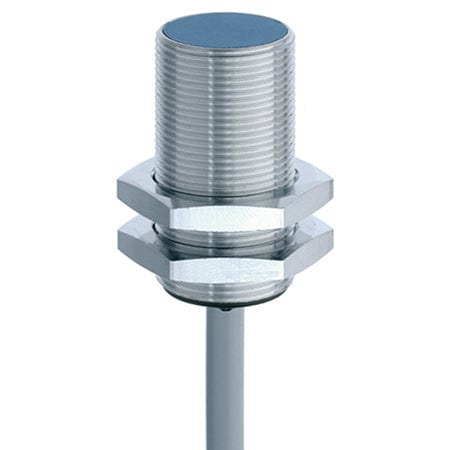

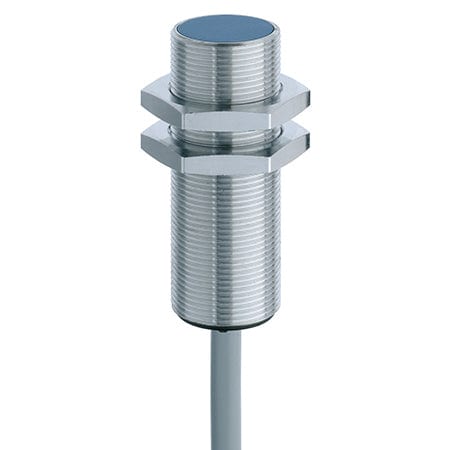

Short Specifications

DW-DD-625-M18

Operating range 8 mm
Switching frequency max. 1000 Hz
Supply voltage 10...65
Polarity 2-wire
Output Normally Open (NO)
Connection PVC, 2 m, 2 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 50 mm
Mounting Quasi-embeddable

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf
CQC certificate pdf

3D CAD Library

2 wire Classics Series 600 M18 Quasi embeddable 8 mm 10...65 VDC

SKU: DW-DD-625-M18
Connection: PVC, 2 m, 2 wire
Polarity and Output: 2-wire|Normally Open (NO)
Sensor length: 50 mm
Price:
CHF 55
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
