Short Specifications

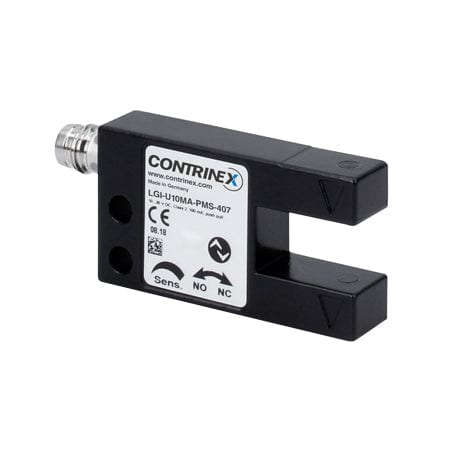

LGI-U10MA-PMS-407
Operating range | 0...10 mm |
Switching frequency max. | 10000 Hz |
Supply voltage | 10...30 |
Polarity | PUSH-PULL |
Output | Light-on/Dark-on/IO-Link |
Sensitivity adjustment | 18-turn pot. |
Connection | M8 3-pin |
Housing size [mm] | U 10 |
Enclosure rating | IP 67 |
Housing material | Die-cast zinc |
Resolution | 0.2 mm |
Temperature range | -25...+60°C |
Light source | LED, infrared 880 nm |
Interface | IO-Link |
Operating principle | Through-beam |
Sensing range max. | 0...10 mm |
Description
Photoelectrics Sensor Fork-Through-beam-U-10-010-mm-Die-cast-zinc-18-turn-pot-LED-infrared-880-nm LGI-U10MA-PMS-407
